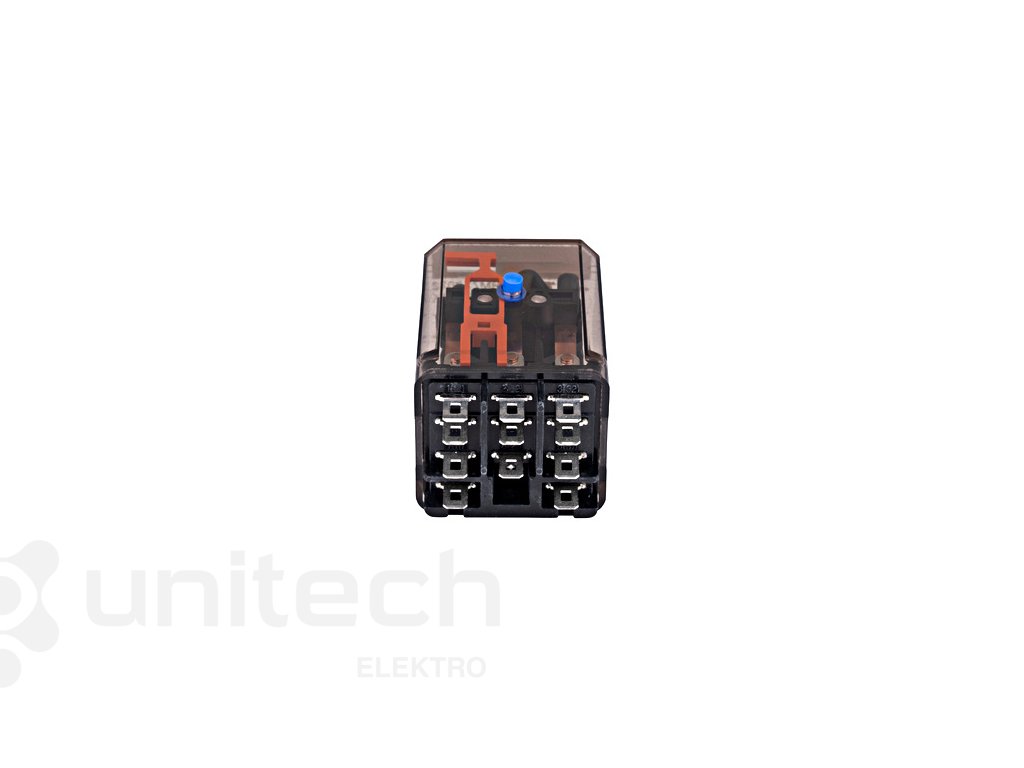

Relé elektromagnetické 12V DC, 16A, RM732012, 3c
Kód: RM772012Podrobný popis
Electrical Characteristics
Insulation Initial Dielectric Between Coil & Contact Class 1500 – 2500 V, 2500 – 3000 V
Insulation Initial Dielectric Between Open Contacts 1500 Vrms
Contact Limiting Making Current 40 A
Contact Limiting Continuous Current 16 A
Insulation Creepage Class 10 – 20 mm
Insulation Initial Dielectric Between Adjacent Contacts 2500 Vrms
Insulation Initial Dielectric Between Contacts & Coil 2500 Vrms
Insulation Creepage Between Contact & Coil 14.9 mm[.587 in]
Contact Limiting Breaking Current 16 A
Coil Magnetic System Monostable, DC
Coil Power Rating Class 1000 – 2000 mW
Coil Power Rating DC 1700 mW
