Stredotónový reproduktor SP-100/8, 30W, 8ohm
Kód: SP-100/8Podrobný popis
SP-100/8
Hi-fi stredobasový reproduktor, 30 W, 8 Ω
- Robustný papierový kužeľ
- Vysoko kvalitná hliníková cievka
- Vyvŕtané pólové jadro
- Gumový rám
- Vynikajúca radiácia a prechodná odozva
Parametre

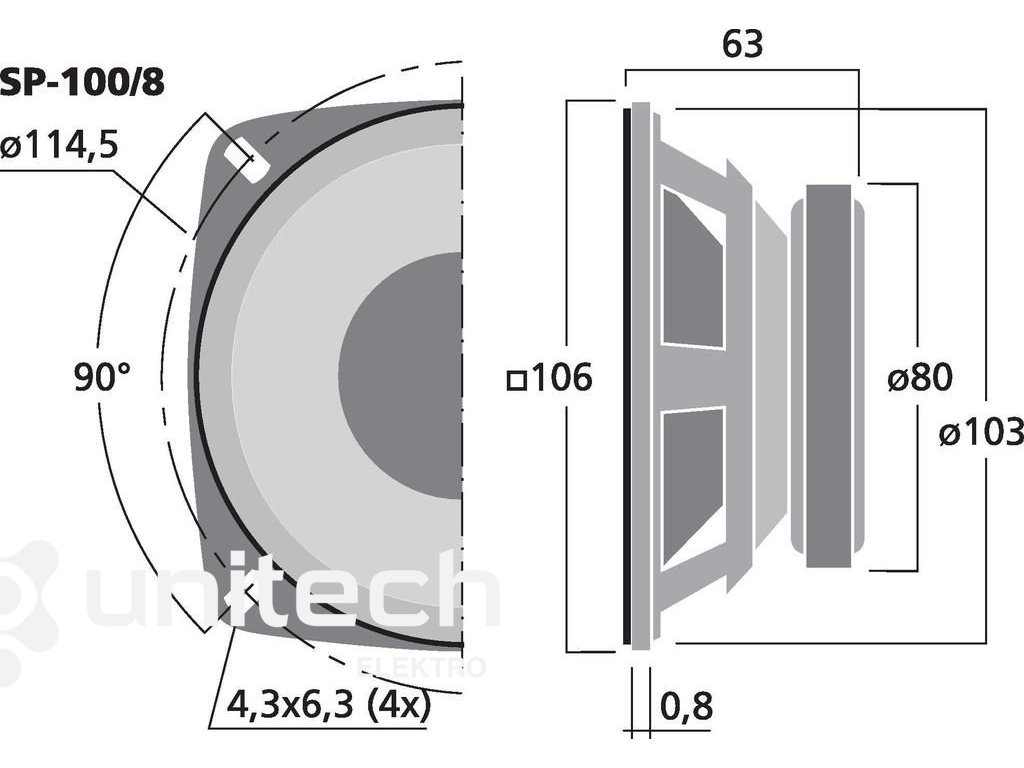

Impedance (Z) 8 Ω Frequency range f3-7,000 Hz Resonant frequency (fs) 61 Hz Power rating (RMS) 30 W Peak music power output (MAX) 60 W SPL 88 dB/W/m Suspension compl. (Cms) 1.23 mm/N Moving mass (Mms) 5.5 g Mech. Q factor (Qms) 2.28 Electr. Q factor (Qes) 0.44 Total Q factor (Qts) 0.37 Equivalent volume (Vas) 4.7 l DC resistance (Re) 6.5 Ω Force factor (BxL) 5.50 Tm Voice coil induct. (Le) 0.4 mH Voice coil diameter Ø 25 mm Voice coil former aluminium Linear excursion (XMAX) ± 2.5 mm Eff. cone area (Sd) 52 cm2 Magnet weight 280 g Magnet diameter Ø 80 mm Mounting cutout Ø 103 mm Mounting depth 62.2 mm Mounting hole diameter Ø 114.5 mm Hole spacing X-axis 81 mm Hole spacing Y-axis 81 mm Dimensions 106 x 106 x 63 mm Outside diameter Ø 127 mm Width 106 mm Height 106 mm Depth 63 mm Colour black Admiss. ambient temp. 0-40 °C Weight 0.79 kg Packing unit 1 Type of speaker 4" Packing dimensions (W x H x L) 0.115 x 0.065 x 0.115 m Gross weight 0.835 kg Net weight 0.795 kg
